Network Products

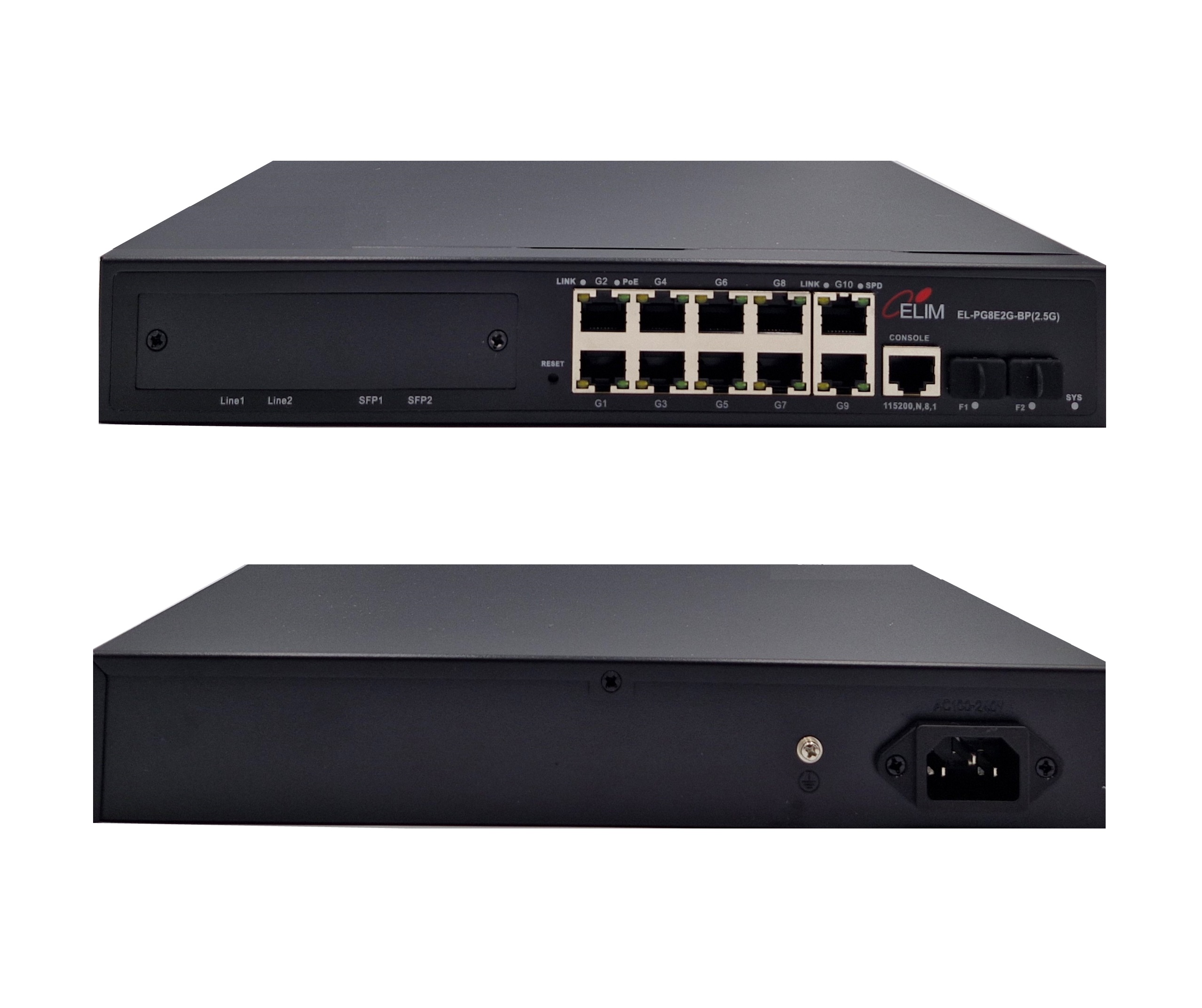

EL–PG8E2G-BP(2.5G)
High-Performance 8-Port L2 POE+ Switch (Bypass Installable)
ㅇ Fiber UP Link: 1G/2.5G * 2 ports
ㅇ UTP POE+ Ports: 1G * 8 ports
ㅇ UTP Non-POE Ports: 1G * 2 ports
ㅇ Console: 1 port
ㅇ POE Standard: IEEE802.3af/at
ㅇ Total Power: 150W
ㅇ Installation Type: Wall Mount / Rack Mount
ㅇ Size: 280*220*44
ㅇ Fiber UP Link: 1G/2.5G * 2 ports
ㅇ UTP POE+ Ports: 1G * 8 ports
ㅇ UTP Non-POE Ports: 1G * 2 ports
ㅇ Console: 1 port
ㅇ POE Standard: IEEE802.3af/at
ㅇ Total Power: 150W
ㅇ Installation Type: Wall Mount / Rack Mount
ㅇ Size: 280*220*44
Key Features
ㅇ Switching Capacity: 30Gbps ㅇ Forwarding Rate: 22.32Mpps ㅇ RAM/FLASH: 64M/8M ㅇ Multicast: IGMP Snooping ㅇ G.8032 ERPS: Supported ㅇ Layer 2 Features: VLAN, STP/RSTP/MSTP, LACP, LLDP ㅇ Strong Security: ACL, IEEE 802.1X ㅇ Convenient Management: CLI, SSH, SNMP v1/v2/v3, Web ㅇ QoS: 802.1P/DSCP Priority, SP/WRR Scheduling ㅇ DHCP: Supported ㅇ Operating Environment: -10 ~ 50°C, 0 ~ 90% ㅇ Power: AC 100~240V, 50~60Hz |  Bypass Module (option) |
